🏠 智能家居方案🏠 Smart Home Setup

Layer Details

• Interaction Layer — Apple Home App for unified control, Siri voice control, HomePod as home hub with Thread border router
• Bridge Layer — HA HomeKit Bridge exposes non-HomeKit devices; Scrypted handles camera streams for HomeKit HSV
• Platform Layer — Home Assistant handles complex automation logic, device state monitoring, historical data logging
• Protocol Layer — Matter/Thread for new devices, Zigbee for Aqara ecosystem, Wi-Fi for Xiaomi devices
• Device Layer — Best brand per function and protocol, not locked to a single ecosystem

Network Planning & Device Isolation

Smart home devices are isolated via dedicated VLANs, separated from the main network for security:

• IoT VLAN — All smart devices on dedicated VLAN, only allowed to reach HA and necessary cloud services
• Camera VLAN — Security cameras on isolated VLAN, no internet access, local recording only
• mDNS Reflector — Configure UniFi mDNS reflector for cross-VLAN HomeKit device discovery

Must-Have HACS Integrations

• hass-xiaomi-miot — Deep integration for Xiaomi/Aqara: AC companion, fresh air fan speed, air purifier, etc.
• Mushroom Cards — Beautiful Lovelace dashboard cards with modern UI
• home-assistant-matter-hub — Expose HA devices via Matter protocol to HomeKit and other platforms
• Adaptive Lighting — Auto-adjust light color temperature based on sunrise/sunset for natural light simulation

Automation Examples

• Arrive Home — When phone joins home Wi-Fi: turn on lights, set AC to preset temp, disable security mode
• Leave Home — When everyone leaves: turn off all lights, AC standby, activate security camera recording
• Sleep Mode — Nightly schedule: bedroom lights dim gradually, living room devices off, fresh air fan to silent
• Climate Auto — Humidity >70% triggers dehumidifier; temp >28°C triggers AC

DIY Fisheye Doorbell Camera

Converting a TP-Link indoor camera with a fisheye lens into a HomeKit doorbell peephole:

• Replace original lens with 170° wide-angle fisheye lens, 3D-printed housing mounted on front door
• Configure as doorbell device in Scrypted for Apple Home doorbell notification push
• Two-way audio requires camera intercom support and correct Scrypted audio codec configuration

Performance & Troubleshooting

• HW Acceleration — Enable Scrypted hardware transcoding (Intel QSV) if Synology NAS supports it
• Memory — Each camera stream uses ~300-500MB; 4 cameras need at least 4GB available RAM
• Common Issues — "No Response" usually from network latency or Docker limits; "Recording gaps" check iCloud storage and Home Hub connection

HSV via Scrypted

• Compatibility — Any RTSP camera works (TP-Link, Hikvision, Dahua, etc.)
• Codec — HSV supports H.264 only, max 1080p@30fps. H.265 needs transcoding, high CPU load
• HW Accel — Enable Intel QSV hardware transcoding on Synology (J4125+ recommended)

Smart Notifications & Automation

• Activity Zones — Draw detection zones per camera, ignore events outside zones
• Face Recognition — Integrates with Photos app for "XXX at the door" precise alerts
• Automation — HSV events trigger HomeKit automations, e.g., "lights on when unknown person detected"

Thread Protocol & Border Routers

• Self-Healing Mesh — Thread devices auto-form mesh topology; single-point failures are automatically routed around
• TBR Core Functions — Gateway routing, IPv6 prefix delegation, mDNS proxy publishing
• TREL Protocol — Allows border routers to communicate via Wi-Fi/Ethernet, extending Thread coverage

2.4GHz Spectrum Interference

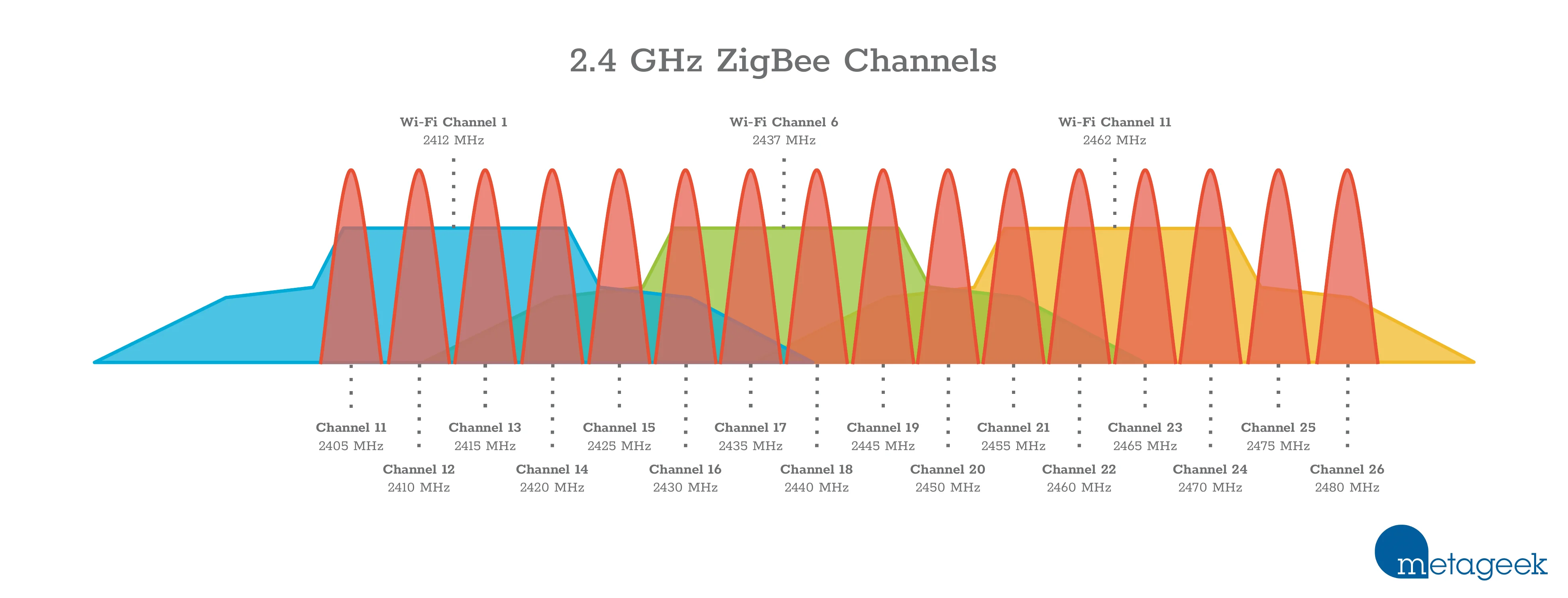

ZigBee vs Wi-Fi Channel Spectrum Overlap (Source: MetaGeek)

• Optimal Channel — Zigbee ch25 (2475MHz) and ch26 (2480MHz) are the only channels completely free from Wi-Fi interference
• Power Disparity — Wi-Fi 100-200mW vs Zigbee 1-10mW; Wi-Fi can completely drown Zigbee signals
• Practical Strategy — Fix 2.4GHz Wi-Fi channel in UniFi, reduce 2.4GHz TX power to Medium/Low
